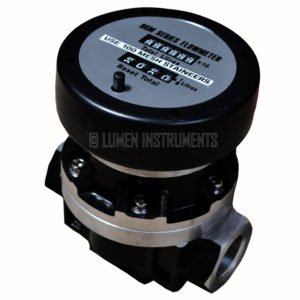

Diesel Flow Meter

Diesel Fuel Flow Measurement from our side is a remarkable and ace product. The low-pressure drop through the meter makes the meter ideally suited for use in gravity applications. This product from our side is a masterpiece and has proven to be a highly reliable and highly accurate method of measuring flow, providing exceptional repeatability and high accuracy. On-time delivery is something that we always follow. Available in Digital Diesel Flow Meter and Mechanical Diesel Flow Meter.

We offer superior quality Diesel Fuel Meter for our customers. These meters are most suitable for diesel, kerosene, petrol MTO. Based on latest technologies, these are in conformance with various national quality standards. It has incorporated the oval rotor principal into its design. This has proven to be a highly reliable and highly accurate method of measuring flow, providing exceptional repeatability and high accuracy.

Also Known as Print Flow Meter With Ticket Printer, High Accuracy Diesel Flow Meter, Flange Type Diesel Flow Meter, Biodiesel Flow Meter

Application: Diesel Flowmeter is a kind of positive displacement Meter to measure the liquid flow or instantaneous flow of the Pipe tube. it is a kind of accumulate meter. With Characteristics of high accuracy, small change by the fluid Viscosity, it is widely used to measure oil kind liquid, forbidden to measure corrosive.

Working Principle:

The measurement part of oval gear flow meter is posed by two elliptical gears mesh with each other and its shell (measuring room).The figure shows that the flow meter works by two elliptical gears to mesh with each other, its working process is as follows: P1 in the figure shows the pressure of liquid from inlet side, to show the outlet pressure, the bottom rotor has no rotating torque even it affected the liquid pressure, but the above gears will move by the rotating

Pressure .ln the status of the above gears driving gear, and the bottom gear are driven gear. Both of these two gears have rotating torque by the liquid pressu/’e, and they move in the direction of the arrow to space The gear space is opposite to, the bottom gear is driving gear, and above gear is driven gear. The bottom gear

pushes the liquid out from the half moon space under the liquid press pushes liquid volume four times of “measurement room”. So, as long as the rotation of gears, the liquid volume can be counted.

Technical Data
